Description
The 0603 surface mount fuses are specifically tested to cater secondary circuit protection needs of compact auto electronics application. The general design ensures excellent temperature stability and performance reliability. The high I2t values ensure high inrush current withstand capability.
Catalog Symbol | Size | Rated Voltage(V) | Ampere Range | Agency | Dimensions | Material | Class of operation | |
AC | DC | |||||||
06.000 | 0603 | / | 63/32 | 1A~8A | JDYX2.E365879 | 1.6*0.81*0.65mm | Body: Ceramic Terminal: Silver over-plated with tin | FAST ACTING |
06.100 | 0603 | / | 63/32 | 250mA~8A | JDYX2.E365879 | 1.6*0.81*0.65mm | Body: Ceramic Terminal: Silver over-plated with tin | SLOW BLOW |
Applications
? Li-ion Battery ? LED Head-Lights ? Automotive Navigation System
? TFT Display ? Battery Management System (BMS) ? Clusters

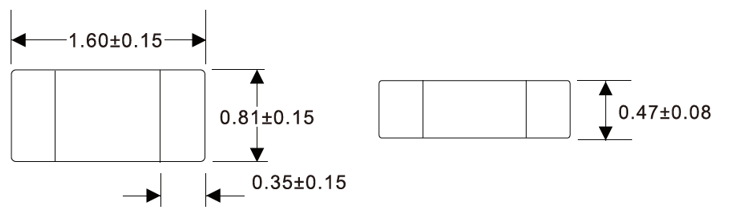

Dimensions(mm)
